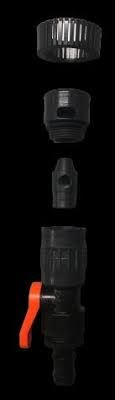

HS valve for 1-2" hose

Detailed features

• Operating function: single-channel – one line serves for both filling and drainage.
• Hole diameter: standard 3.5 mm , other sizes on request.
• Filling flow rate: from 2.3 to 31 l/min , depending on the open diameter and water pressure.
• Drainage flow rate: from 1.7 to 6.0 l/min , depending on the diameter of the hole.
• Hose connection options:
  • ¾″ hose
  • ½″ hose
  • PE hose 8×10.5 mm and 10×12.5 mm
  • PE hose 6×8 mm ([turn0view0])
• Manual bottom valve: allows stopping the filling to a specific tray.
• Installation option: placed under the filters to prevent clogging by leaves and dirt.
• Construction and maintenance: durable design, resistant to harsh growing conditions, with a removable inner cone part for easy cleaning.

Recommendations for use

• Select an appropriate hole diameter (3.5 mm or other on request) according to the water pressure for the desired filling and draining flow rate.
• Install the valve under the pan filter to ensure protection from dirt and trouble-free operation.
• Use the manual bottom valve when you want to stop filling to a specific tray.
• Cleaning is easy — simply disassemble the moving cone and remove accumulated particles.

Benefits

• Unified filling and draining line — fewer components and easier installation.
• Wide flow range — from 2.3 to 31 l/min for filling and from 1.7 to 6.0 l/min for draining, depending on conditions.
• Flexible connection options to various hoses (½", ¾", PE).
• Easy installation under filters and excellent resistance to contamination.
• The robust construction and easy maintenance ensure a long service life.
