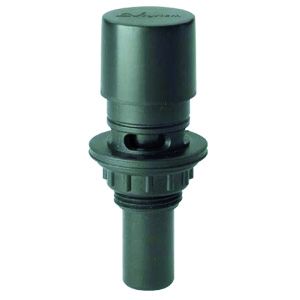

Siphon valve with 10 mm rubber gasket

Detailed features

• Level setting: Three preset levels for holding and draining water by moving the riser pipe.
• Continuous Drainage: If the riser is completely removed, the valve drains the tray completely.
• Full tray: At the maximum upper position of the riser, water is retained in the tray.
• Drainage: Dependent on the diameter of the hole - standard without reduction ring: 17.5 mm inner diameter provides a maximum drainage of 9 l/min . Other sizes are available on request.
• Rubber Gasket: Includes standard 10 mm rubber gasket , compatible with standard sump filters. Optionally available with 5 mm gasket. Gasket height affects operating water level in combination with riser settings.
• Installation: It is possible to use 1 to 3 Siphon Valves in already constructed sump filters. The filters allow for easy removal of the cover and installation of the valve.
• Construction: Very sturdy and resistant to harsh growing conditions. Easily disassembled for regular cleaning.

Recommendations for use

• Adjust the riser pipe to the desired fill and drain threshold (3 levels or continuous drain).
• Use the standard 10mm rubber gasket for optimal performance with standard sump filters. If you want a different level of retention, look for a 5mm gasket option.
• Install 1–3 valves according to need and space in the filters — they are easy to install and remove.
• Regular cleaning is simplified thanks to the sturdy, detachable design.

Benefits

The Siphon Valve offers reliable, automatic emptying of trays to a set level through a siphon effect. The standard 10 mm rubber gasket ensures easy integration with sump filters, and the design is durable and easy to maintain. The ability to use up to three valves in one system allows for flexibility and control.
