GSE Temperature, Min. and Max. Speed, and Hysteresis controller (1 fan 2.5A)
Temperature, minimum-maximum speed controller with hysteresis setting.
Sizes and technical data:
- Controller: W80xH80xL130mm
- Case: W150xH110xL170mm
- Designed for: 1x200W / TRIAC 1x16A
- Voltage: 230V 50HZ
- Digital sensor 5V Measures temperatures from –55°C to +125°C ( –67°F to +257°F )
- 0.5°C accuracy from –10°C to +85°C
- Protection class: IP54
Settings range:
- Temperature: 20C° to 30C°
- Minimum speed: off, 20% to 100%
- Maximum speed: 100% to 50%
- Hysteresis: 1C° to 8C°
- Brand:G-systems
- Code:12311
- Weight:0.650 Kgs
Quick Buy

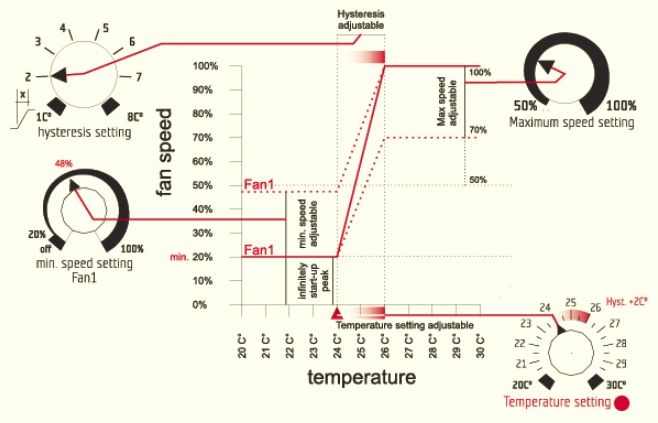

The Temperature, minimum-, maximum- speed controller with hysteresis setting is a temperature depended speed controller for ventilated rooms with one ore more fans. The controller keeps the temperature constantly and impedes to run under the set minimum-speed, as well to run over the set maximum speed. The hysteresis defines the temperature range. It can be easily controlled, adjusting the required temperature minimum-, maximum speed and hysteresis on four knobs.
The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4meter long cable and can be extended up to 50meters.
